Quick Details

  • Type: Axial Flow Fan
  • Electric Current Type: AC
  • Mounting: Free Standing
  • Blade Material: Plastic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Jasonfan
  • Model Number: FJ9022AB
  • Voltage: 115-230V
  • Power: 50/60Hz
  • Air Volume: 29-37CFM
  • Speed: 2250-2850RPM
  • Certification: CCC, CE, CSA, ROHS
  • After-sales Service Provided: No overseas service provided
  • Motor Structure: Shaded pole motor
  • Safety: Impedance protected
  • Operation System: Dual high precision ball bearings.(single sleeve bearing)
  • Dielectric Withstand Voltage: AC 1800V at 0.5mA 50/60Hz
  • Allowable Ambient Temperature Range: -25~+65 degree(ball bearing),-10~+45 degree(sleeve bearing)
  • Power Supply Connection: UL3385-22 Lead wire,terminal connection
  • Insulation: B Class
  • Protection Grade: IP34
  • Unit weight: 0.26KG

Packaging & Delivery

Packaging Details standard carton reinforced with plastic straps
Delivery Time 10days after deposit





With the advantages of low power consumption and low noise, long lifespan, large air flow and plumbum-free, JASONFAN are widely used in industry of Computer Information, Network &Telecom , optoelectronics, Industrial equipment, Medical equipment, home appliances etc.

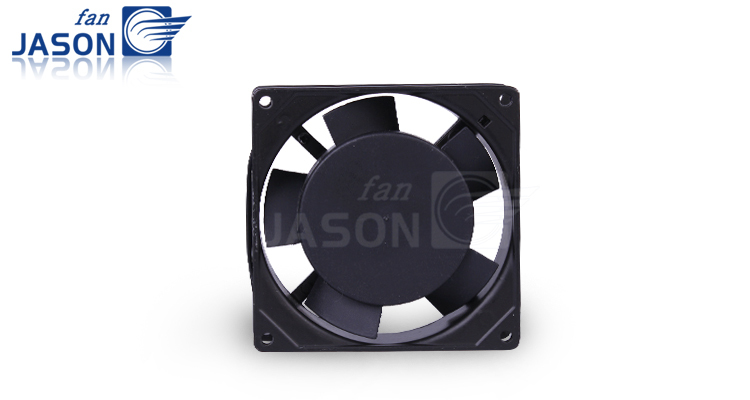

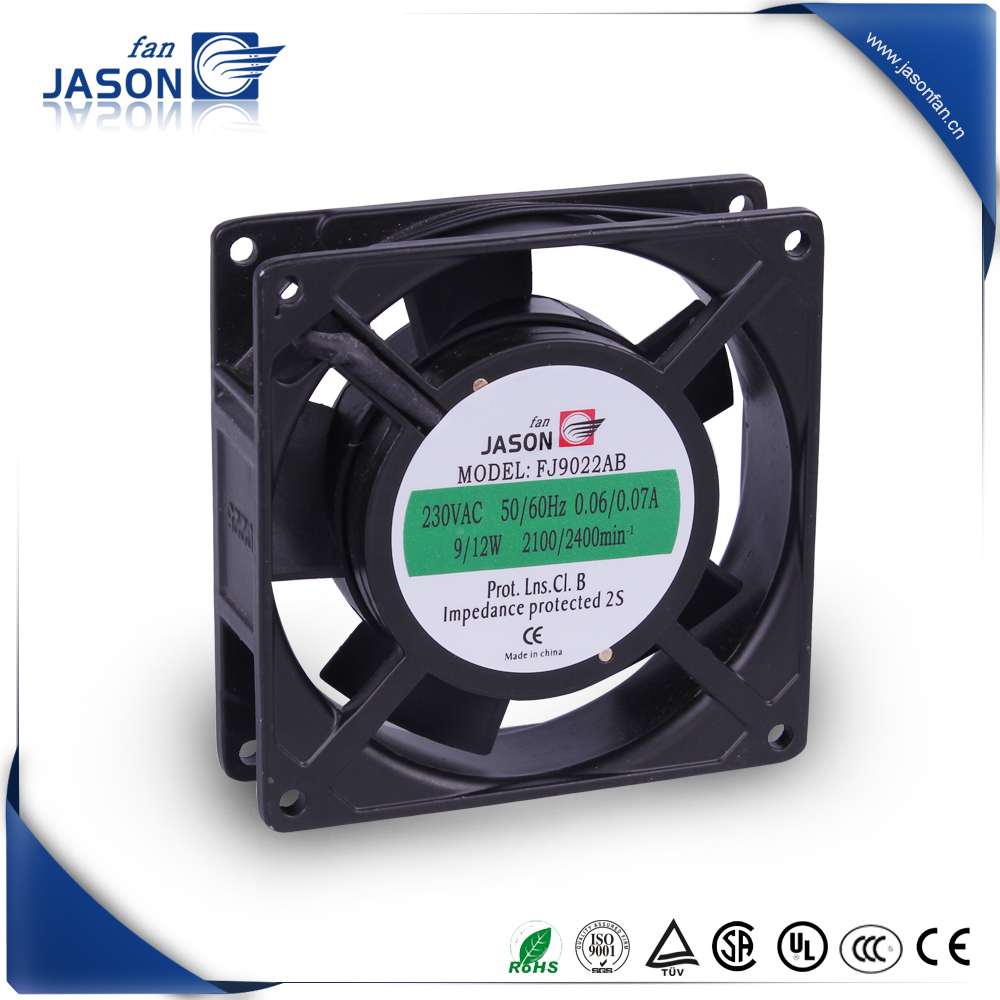

Shaded Pole Motor Fan With Compact Design And High Efficiency





Overview



Frame

Aluminium alloy die-casting, surfaces is finished by black  anti-corrosion treatment.

Impeller
Black plastic PBT UL94V-0

Operation Temperature/Humidity Range  (under unconcretionary state)

-40°C ~65°C (temperature), 0% ~ 95% (himidity)
Protection
Impedance Protected
Withstand Voltage
AC 1,500V , 1 min at 0.5mA, 50/60 Hz
Insulation System

Design according to IEC61858 Grade B
Protection Grade
IP34



Specifications

Category

Centrifugal fan

TypeFJ9022AB
Rated Voltage

230V

Frequency

50/60Hz

Current

0.06-0.07A

Input Power

11-12W

Speed

2350-2850RPM

Max Air Flow

27-29CFM

StaticPressure

57Pa-65Pa

Noise

32-34dB

Weight

260G

Dimensions



Certifications

       WE  ARE  LEADING  PROFESSIONAL  MANUFACTURER



Our Main Market: Domestic Market(45.00%), North America(15.00%), Oceania(10.00%), Africa(3.00%)



Southeast Asia(10.00%), Western Europe(7.00%),  Mid East(6.00%), South America(4.00%)



Cooperation Brands

Product Description



Overview



1.Frame

   Aluminium alloy die-casting, surfaces is finished by black anti-corrosion treatment.

2.Impeller

   Black plastic PBT UL94V-0

3.Operation temperature and humidity range: (under unconcretionary state)

   -40°C ~+65°C (temperature), 0% ~95% (humidity)

4.Protection

   Impedance protected

5.Withstand Voltage

   AC 1500V, 1 min at 0.5mA, 50/60Hz.

6.Insulation System

   Designed according to IEC61858 Grade B

7.Protection Grade

   IP34

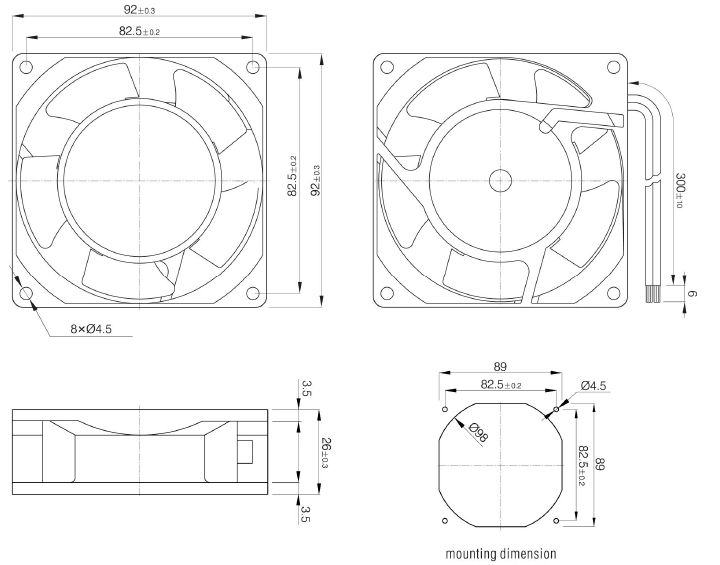

Dimensions



  • Rotation direction of blades: CCW seen from the front impellers
  • Power Connection: UL3385-22 Lead wire
  • Unit weight: 0.26kg

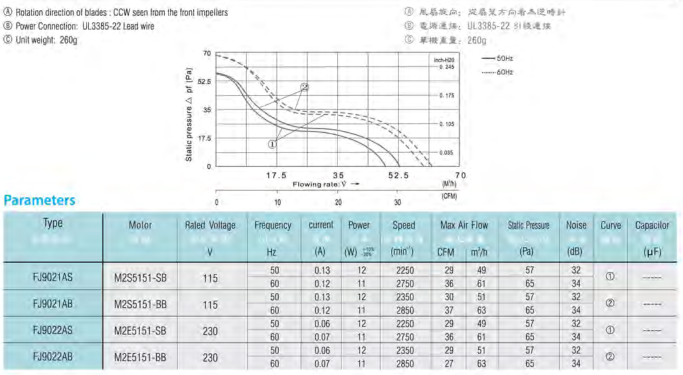

Specifications

Category

Axial fan

TypeFJ9022AB
Rated Voltage

115-230V

Frequency

50/60Hz

Current

0.06A-0.13A

Input Power

11W-12W

Speed

2250-2850RPM

Max Air Flow

29-37CFM

StaticPressure

57Pa-65Pa

Noise

32dB-34dB

Weight

0.26KG





Exhibition

Product Application



Note

All the listed price is only for references, for the latest price please contact us directly.



CLICK HERE TO MAIL ME: Shirley Lv



Company Information

About us

   We are specialized in developing and producing

axial fans, centrifugal fans and air filters in different

sizes with high quality in the cooling and ventilation

fields. All of our products are reliable and they can

work in harsh circumstance efficiently. They are

featured in High airflow, Low noise and Durable life.

Our company reposes on a simple Chinese

city - Yueqing, which is famous for low-voltage

electronics and precision industry around the world.

   Devoted to the development of fans and insisting

on high quality are the spirit and the principle of our

company. We will try our best to satisfy the most

rigorous inquiries of customers and make Jasonfan

a worldwide welcomed brand.

Workshops



For assuring the stability and consistency of product quality, we try our best to increase the self-making rate of all the parts. We have attained more than 90% self-making rate until now, from the raw material purchase to injection and die-casting. In our plant, we cacarry our production and stock process strictly according to Iso9001 standar. All the steps including receiving material, production, inspection, stock and Ex-warehouse, we carry out through our ERP system. During production, semi-finished products must get through three inspections--withstanding voltage testing, earth testing and conventional testing. Every product has a unique laser-printed code for quality trace.

Testing Equipments



Skill achieves excellence. We set up a Professional laboratory system, including test equipment for air flow, noise and high-low temperature alternating cabinet (salt spray chamber included), etc. Our technician team members achieve their ideas of air movement solution through circuit analysis, test of reliability and environment in this laboratory system. As response to the new rule of EU ERP regulations, we have accomplished the efficiency test of every model we have.



Packaging



It is very important to protect our fans during their transportation to our customers. We replaced our foam packing with carton paperboard as interval of fans in order to avoid environmental problem of foam. We load all the cartons on pallet in order to save labor force cost for our customer. And we also supply plastic film parcel up the outside of the pallet for waterproof if our customers’ end are in rain reason.
