170x170x52mm Large Air Flow Industrial High Pressure Axial Flow Fan

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Plastic
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Jasonfan
Model Number:
FJ17052AB
Voltage:
115-230V
Power:
50/60Hz
Air Volume:
165-200CFM
Speed:
2400-3000RPM
Certification:
CCC, CE, CSA, ROHS
After-sales Service Provided:
No overseas service provided
Motor Structure:
Shaded pole motor
Safety:
Impedance protected
Operation System:
Dual high precision ball bearings.(single sleeve bearing)
Dielectric Withstand Voltage:
AC 1800V at 0.5mA 50/60Hz
Allowable Ambient Temperature Range:
-25~+65 degree(ball bearing),-10~+45 degree(sleeve bearing)
Power Supply Connection:
UL3266-18 Lead wire
Insulation:
B Class
Protection Grade:
IP34
Unit weight:
990g
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
flexible wrapping and standard carton.
Port
Ningbo/Shanghai
Lead Time :
10days after deposit

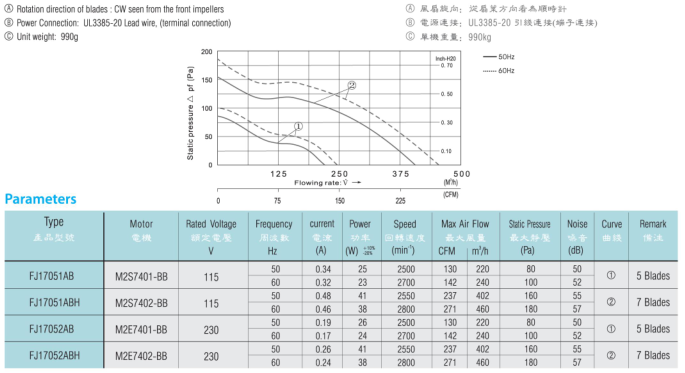

Parameters

Product Images

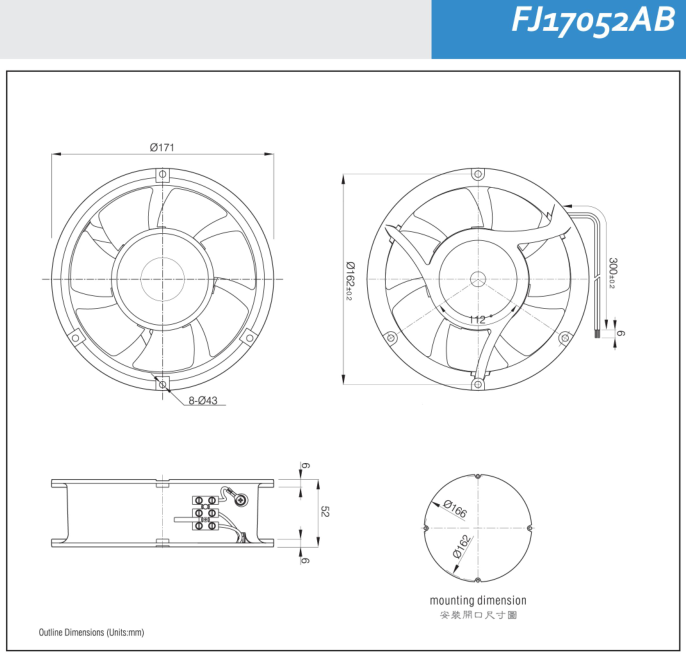

12 FJ17052AB.jpg


Product Description



Overview



Motor Structure: Shaded Pole motor, with impedance protection



Blades: Made by injection mould with black plastic PBT+30% glass fiber + VO class of anti-flaming liquid.



Frame material: Die-casting Aluminum Alloy



Bearing Type: Maintain-free NMB bearing



Insulation Isolation Grade: B          Protection Grade: IP 34



Dielectric Withstand Voltage: AC 1800V, at 0.5mA, 50/60Hz



Allowable Ambient Temperature: -20 to +65 Centigrade degree (ball bearings)         (Under unconcretionary)



Noise Lever: 52-54dB at normal operation



Life: 30,000hours



Connection way: UL3266-18 lead wire connection



Unit weight: 990g



Material

  • Fixed guard: Steel wire is finished with black oven backed painting and anti-corrosion treatment.
  • Impeller: pressed from metal armor plate, impellers are installed on rotor by press. surface is finished by black paint and anti-corrosion treatment.
  • Bearing Type: Maintain-free NSK ball bearing.
  • Power Supply Connection: Wire connection or terminal box set.

Specifications

Category

Axial fan

TypeFJ17052AB
Rated Voltage

115-230V

Frequency

50/60Hz

Current

0.18A-0.35A

Input Power

22W-26W

Speed

2400-3000RPM

Max Air Flow

165-200CFM

StaticPressure

150Pa-170Pa

Noise

52-54dB

Weight

0.99KG



• Rotation direction of blades : CCW seen from the front impellers

• Power Connection: Lead or terminal box

• Unit weight: 32.4kg



Product Application

product application.jpg



Certifications

JasonFan certifications.jpg

       WE  ARE  LEADING  PROFESSIONAL  MANUFACTURER

Our Main Market: Domestic Market(45.00%), North America(15.00%), Oceania(10.00%), Africa(3.00%)

Southeast Asia(10.00%), Western Europe(7.00%),  Mid East(6.00%), South America(4.00%)



Cooperation Brands

Cooperation brand.jpg



Note

All the listed price is only for references, for the latest price please contact us directly.



CLICK HERE TO EMAIL ME: Shirley Lv



Exhibition

Company Information
About us.jpg

About us

   We are specialized in developing and producing

axial fans, centrifugal fans and air filters in different

sizes with high quality in the cooling and ventilation

fields. All of our products are reliable and they can

work in harsh circumstance efficiently. They are

featured in High airflow, Low noise and Durable life.

Our company reposes on a simple Chinese

city - Yueqing, which is famous for low-voltage

electronics and precision industry around the world.

   Devoted to the development of fans and insisting

on high quality are the spirit and the principle of our

company. We will try our best to satisfy the most

rigorous inquiries of customers and make Jasonfan

a worldwide welcomed brand.

Workshops




For assuring the stability and consistency of product quality, we try our best to increase the self-making rate of all the parts. We have attained more than 90% self-making rate until now, from the raw material purchase to injection and die-casting. In our plant, we cacarry our production and stock process strictly according to Iso9001 standar. All the steps including receiving material, production, inspection, stock and Ex-warehouse, we carry out through our ERP system. During production, semi-finished products must get through three inspections--withstanding voltage testing, earth testing and conventional testing. Every product has a unique laser-printed code for quality trace.

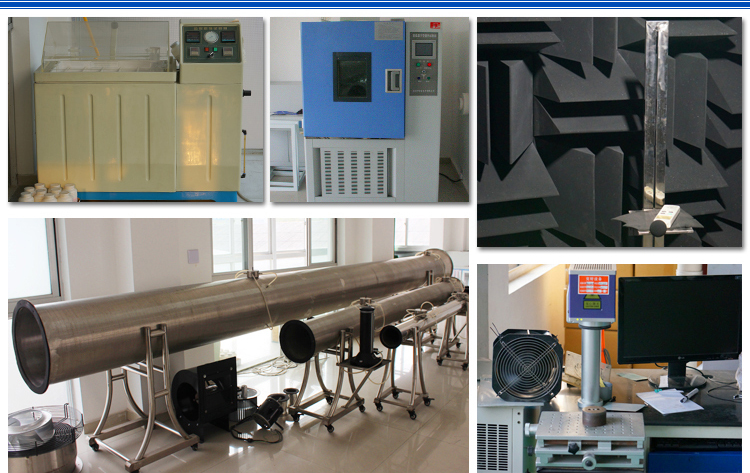

Testing Equipments

testing equipment.jpg



Skill achieves excellence. We set up a Professional laboratory system, including test equipment for air flow, noise and high-low temperature alternating cabinet (salt spray chamber included), etc. Our technician team members achieve their ideas of air movement solution through circuit analysis, test of reliability and environment in this laboratory system. As response to the new rule of EU ERP regulations, we have accomplished the efficiency test of every model we have.



Packaging




It is very important to protect our fans during their transportation to our customers. We replaced our foam packing with carton paperboard as interval of fans in order to avoid environmental problem of foam. We load all the cartons on pallet in order to save labor force cost for our customer. And we also supply plastic film parcel up the outside of the pallet for waterproof if our customers’ end are in rain reason.
