Manufacturer AC axial fan/Axial Flow Fan for exhaust

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Plastic
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Jasonfan
Model Number:
FJ12032AB
Voltage:
230V
Power:
50/60Hz, 19W
Air Volume:
85-95CFM
Speed:
2500-2800RPM
Certification:
CCC, CE, CSA, ROHS
After-sales Service Provided:
No overseas service provided
Safety:
Impedance protected
Bearing:
Ball bearings or sleeve bearing
Rated Current:
0.12A
Power Supply Connection:
UL3385-22 Lead wire,terminal connection
Motor Type:
M2E6301-AB
Air Pressure:
63PA
Noise level:
34 dBA
Cooling method:
Direct Cooling
SupplyAbility
SupplyAbility:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
axial flow fan is with flexible wrapping and standard carton.
36pcs/Carton.Weight:19.3kg/Carton.Carton size:32.5*42.5*34CM.
Port
Ningbo/Shanghai
Lead Time :
10days after deposit

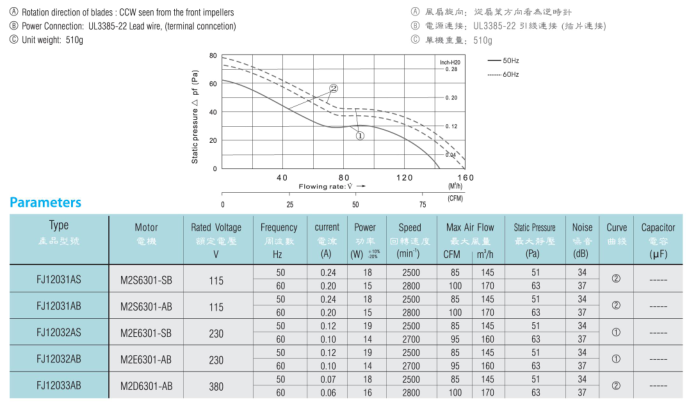

Prameters

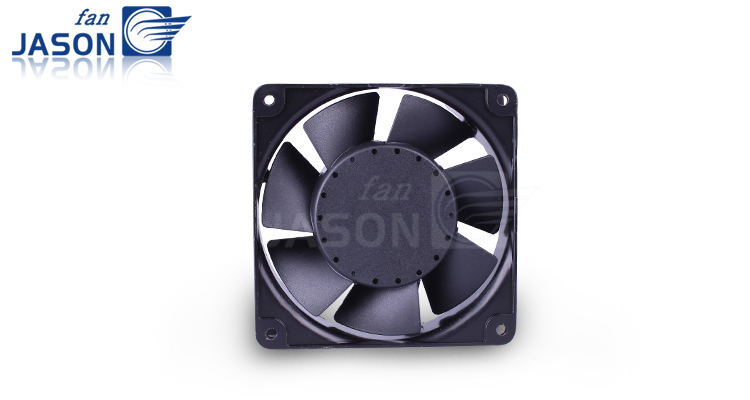

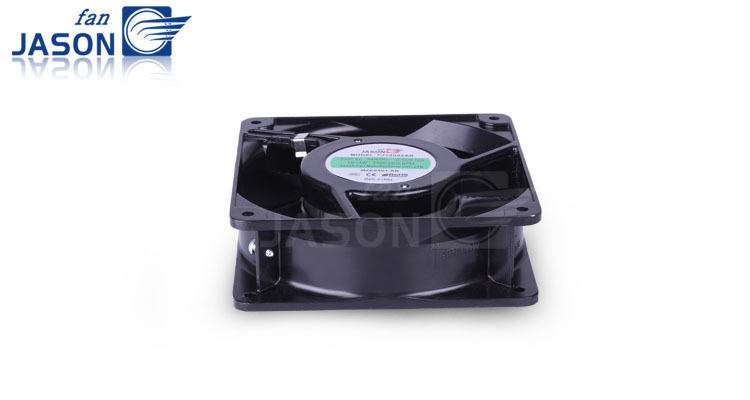

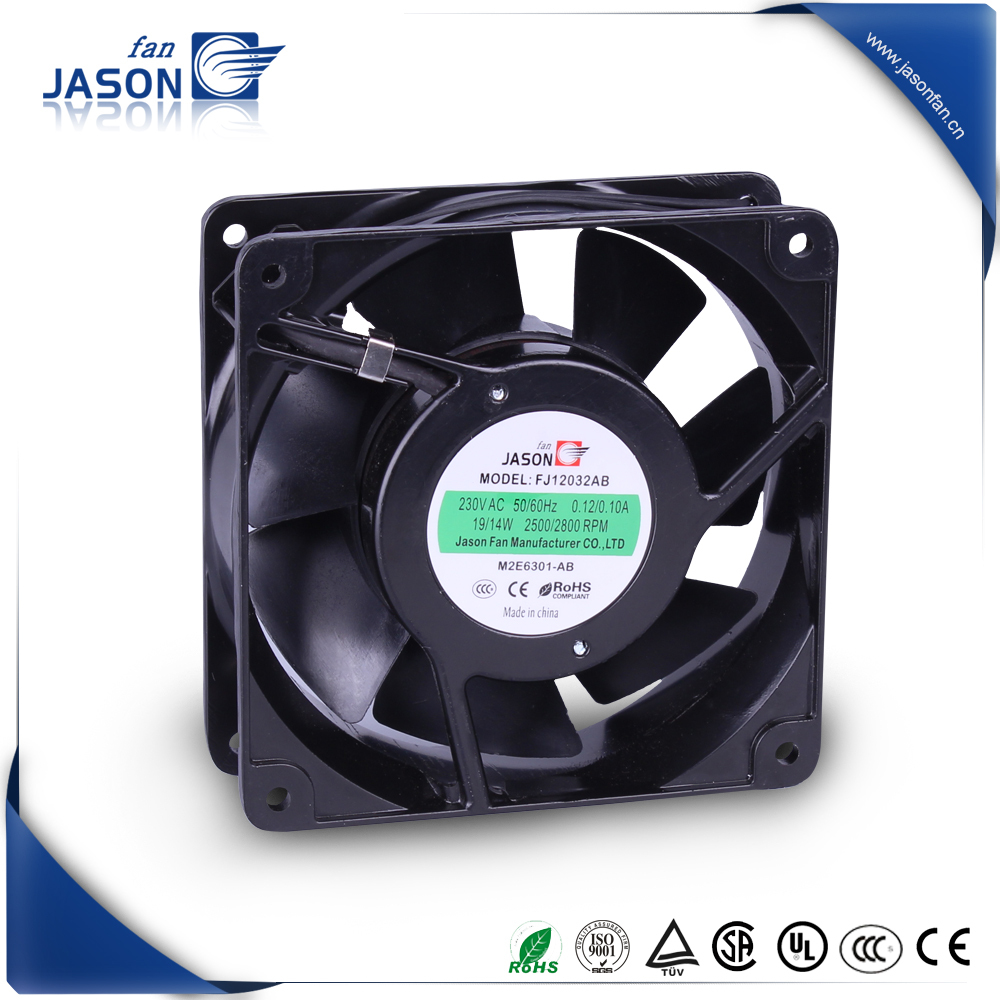

Product Images



Certifications

       WE  ARE  LEADING  PROFESSIONAL  MANUFACTURER



Our Main Market: Domestic Market(45.00%), North America(15.00%), Oceania(10.00%), Africa(3.00%)



Southeast Asia(10.00%), Western Europe(7.00%),  Mid East(6.00%), South America(4.00%)

Cooperation Brands

Product Description



Overview

  • Motor Structure: Shaded Pole motor, with impedance protection
  • Blades: Made by injection mould with black plastic PBT+30% glass fiber + VO class of anti-flaming liquid.
  • Frame material: Die-casting Aluminum Alloy
  • Bearing Type: Maintain-free NMB bearing/sleeve bearing
  • Insulation Isolation Grade: B          Protection Grade: IP 34
  • Dielectric Withstand Voltage: AC 1800V, at 0.5mA, 50/60Hz
  • Allowable Ambient Temperature: -20 to +65 Centigrade degree (ball bearings)         (Under unconcretionary)               -10 to +45 Centigrade degree (sleeve bearing)
  • Noise Lever: 34-37dB at normal operation
  • Life: 30,000hours
  • Unit weight: 510g

Specifications

Category

Axial fan

TypeFJ12032AB
Rated Voltage

230V

Frequency

50/60Hz

Current

0.10A-0.12A

Input Power

14W-19W

Speed

2500-2700RPM

Max Air Flow

145-160CFM

StaticPressure

51Pa-63Pa

Noise

51-63dB

Weight

0.51KG



Exhibition

Product Application



Note

All the listed price is only for references, for the latest price please contact us directly.



CLICK HERE TO MAIL ME: Shirley Lv



Company Information

About us

   We are specialized in developing and producing

axial fans, centrifugal fans and air filters in different

sizes with high quality in the cooling and ventilation

fields. All of our products are reliable and they can

work in harsh circumstance efficiently. They are

featured in High airflow, Low noise and Durable life.

Our company reposes on a simple Chinese

city - Yueqing, which is famous for low-voltage

electronics and precision industry around the world.

   Devoted to the development of fans and insisting

on high quality are the spirit and the principle of our

company. We will try our best to satisfy the most

rigorous inquiries of customers and make Jasonfan

a worldwide welcomed brand.

Workshops



For assuring the stability and consistency of product quality, we try our best to increase the self-making rate of all the parts. We have attained more than 90% self-making rate until now, from the raw material purchase to injection and die-casting. In our plant, we cacarry our production and stock process strictly according to Iso9001 standar. All the steps including receiving material, production, inspection, stock and Ex-warehouse, we carry out through our ERP system. During production, semi-finished products must get through three inspections--withstanding voltage testing, earth testing and conventional testing. Every product has a unique laser-printed code for quality trace.

Testing Equipments



Skill achieves excellence. We set up a Professional laboratory system, including test equipment for air flow, noise and high-low temperature alternating cabinet (salt spray chamber included), etc. Our technician team members achieve their ideas of air movement solution through circuit analysis, test of reliability and environment in this laboratory system. As response to the new rule of EU ERP regulations, we have accomplished the efficiency test of every model we have.



Packaging



It is very important to protect our fans during their transportation to our customers. We replaced our foam packing with carton paperboard as interval of fans in order to avoid environmental problem of foam. We load all the cartons on pallet in order to save labor force cost for our customer. And we also supply plastic film parcel up the outside of the pallet for waterproof if our customers’ end are in rain reason.
