Quick Details

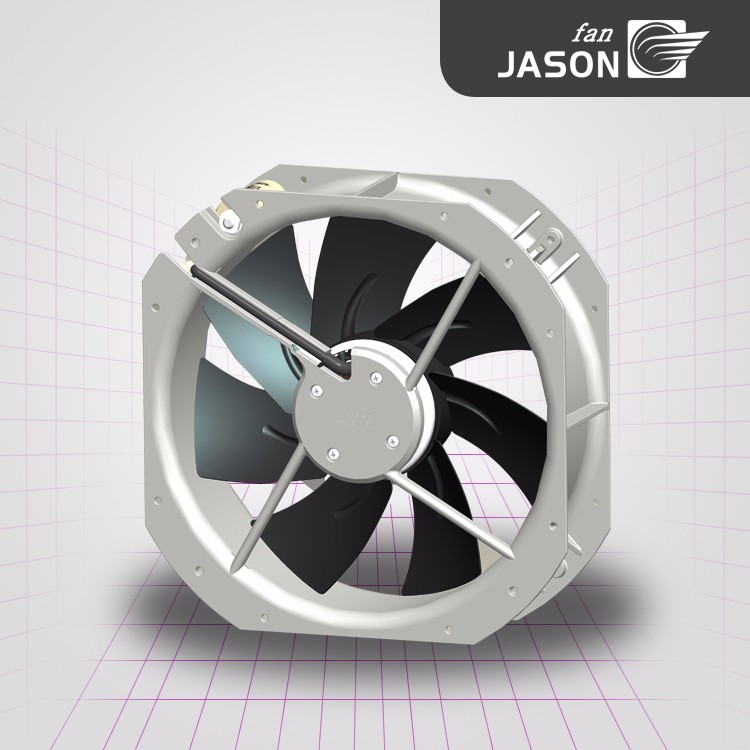

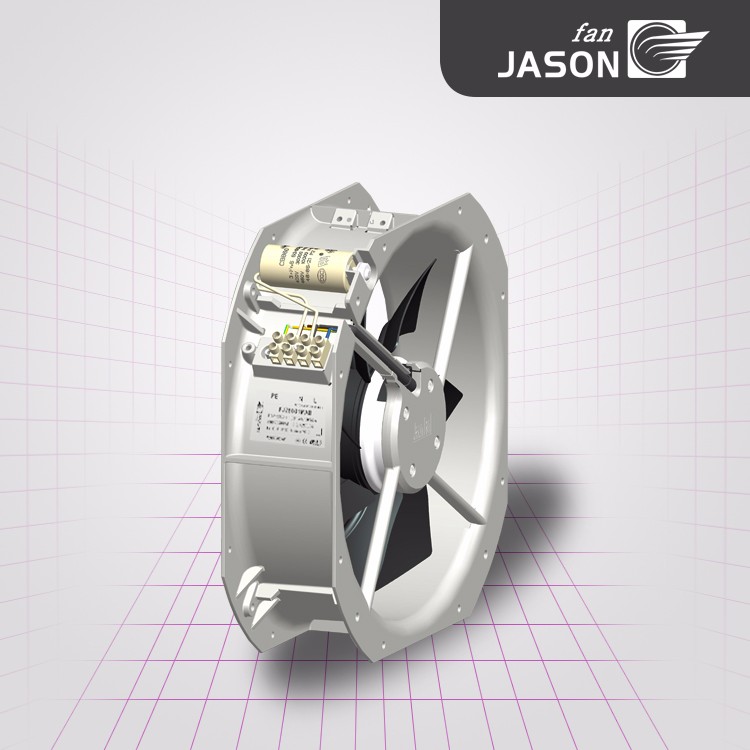

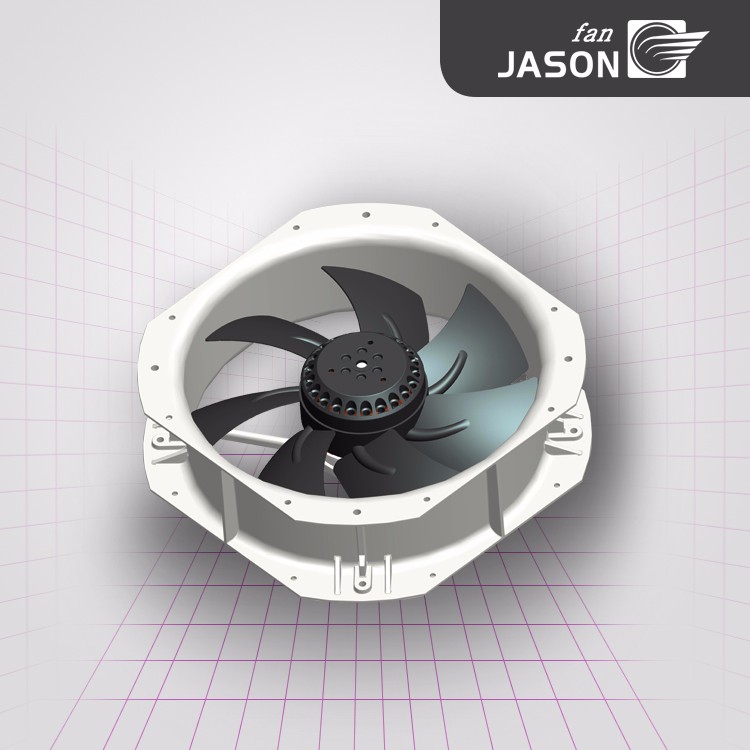

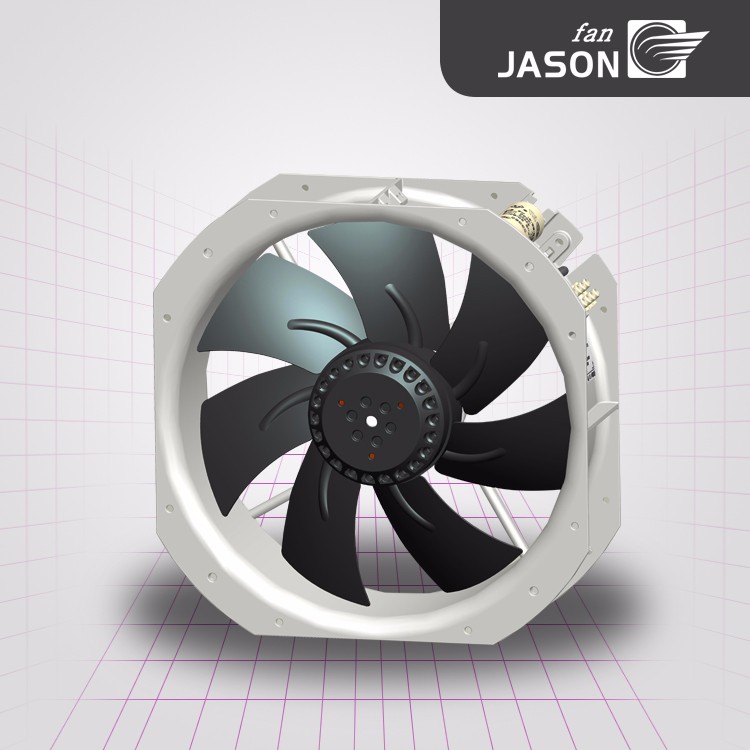

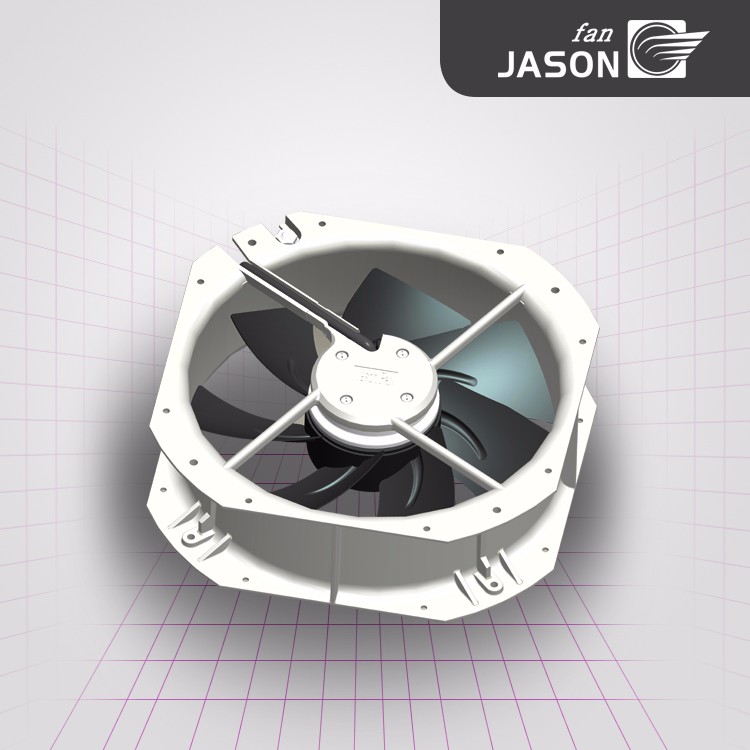

  • Type: Axial Flow Fan
  • Electric Current Type: AC
  • Mounting: Free Standing
  • Blade Material: Plastic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Jasonfan
  • Model Number: FJ28082MAB
  • Voltage: 115-380V
  • Power: 50/60Hz
  • Air Volume: 602-1150CFM
  • Speed: 1420-2750RPM
  • Certification: CCC, CE, CSA, ROHS
  • After-sales Service Provided: No overseas service provided
  • Motor Structure: external rotor motor
  • Safety: Thermally protected
  • Operation System: Maintain-free double high precision ball bearings.
  • Dielectric Withstand Voltage: AC 1800V at 0.5mA 50/60Hz
  • Allowable Ambient Temperature Range: -25~+90 degree
  • Power Supply Connection: PA-10(Terminal connection)
  • Insulation: F Class
  • Protection Grade: IP54
  • Unit weight: 2.8KG

Packaging & Delivery

Packaging Details general industrial equipment is with flexible wrapping and standard carton.
5pcs/Carton.Weight:15.5kg/Carton.Carton size:54*33*33.5CM.
Delivery Time 15days after deposit





general industrial equipment

Specification:

Motor Structure: Single phrase motor with external rotor inducted by a running capacitor.
Operation System: Ultra temperature protection under standard speed. Automatic protection under half or low speed.
Allowable Ambient Temperature Range: (under unconcretionary state)
-25°C~+85°C (Operating),-30°C~+90°C (Storage)
Insulation Resistance: Over 100Mega Ohm tested by a resistor at DC 500V .
Dielectric Withstanding Voltage: AC2,500 V,at 0.5mA,50/60 Hz
Insulation Isolation Grade: F
Protection Grade: IP55
Unit Weight: 2.9kg

Specifications

Category

Axial fan

TypeFJ28082MAB
Rated Voltage

115-380V

Frequency

50/60Hz

Current

0.23A-1.20A

Input Power

48W-140W

Speed

1420-2750RPM

Max Air Flow

602-1150CFM

StaticPressure

80Pa-140Pa

Noise

45-70dB

Weight

2.8KG
