220V High Efficiency Centrifugal Blower Fan

FOB Reference Price:Get Latest Price
US $10-28 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Centrifugal Fan
Electric Current Type:
AC, AC
Blade Material:
Plastic
Mounting:
Duct Fan
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Jason Fan
Model Number:
FJC2E-250.48D
Power:
116-172W
Voltage:
230V
Air Volume:
738-797CFM
Speed:
2650~2950RPM
Certification:
CCC, CE, CSA, ROHS, UL
Motor Structure:
external rotor motor
Protection Grade:
IP44
Unit weight:
2.7KG
Dielectric Withstand Voltage::
AC 1800V at 0.5mA 50/60Hz
Insulation:
F Class
Power Supply Connection:
UL3266-18 Lead wire
Allowable Ambient Temperature Range:
-40~+80 degree
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard carton.
Port
NINGBO OR SHANGHAI
Lead Time :
In 15 dyas

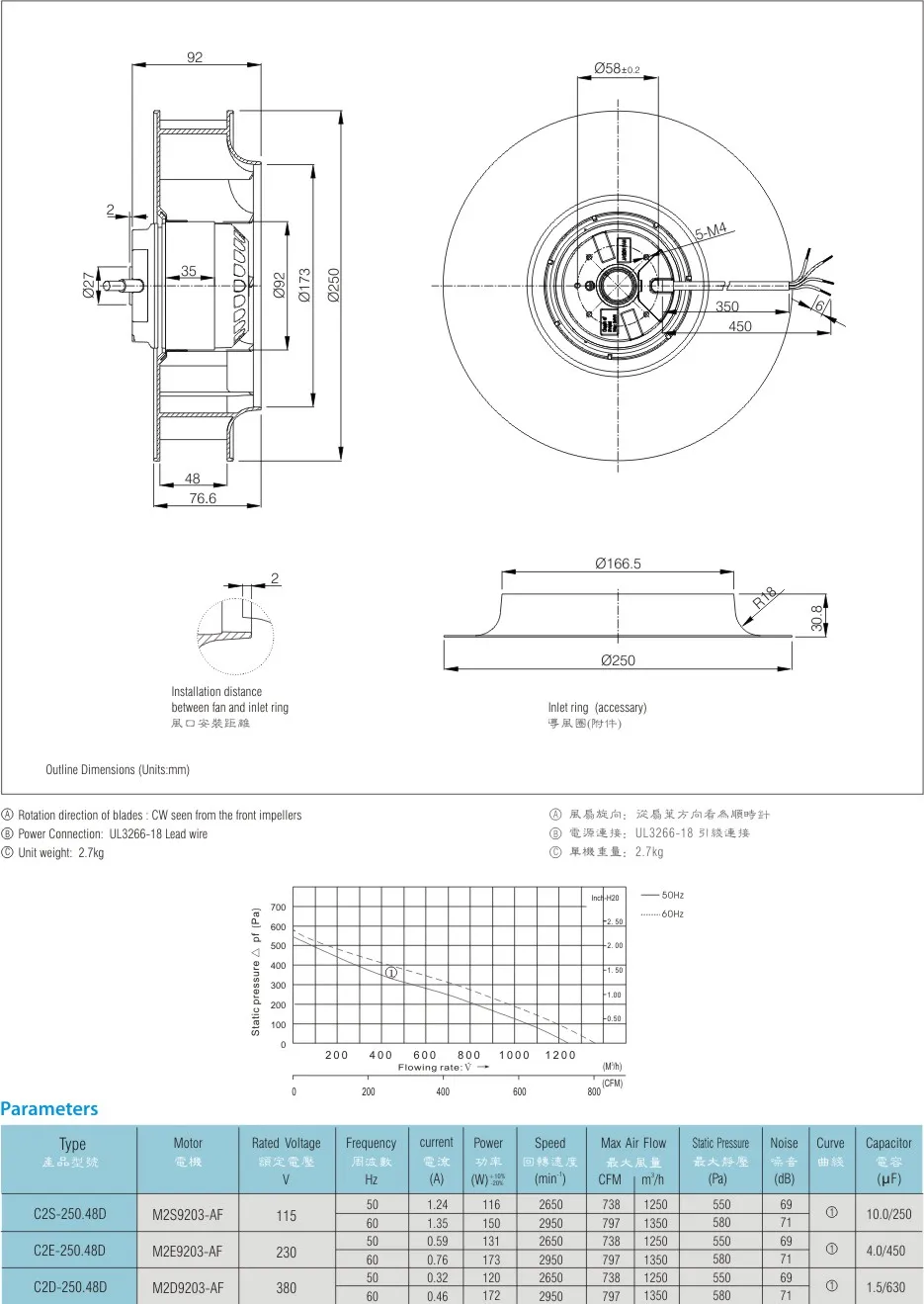

220V High Efficiency Centrifugal Blower Fan

 C2E-250.48D
Motor
Cage type capacitor structure external rotor motor
Impeller
Black PA nylon one-time injection moulding
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +80ºC (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Voltage endurance
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
IP44

 C2E-250.48D
Motor
Cage type capacitor structure external rotor motor
Impeller
Black PA nylon one-time injection moulding
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +80ºC (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Voltage endurance
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
IP44
Quick Details:

TypeCentrifugal Fan
ImpellerBlack PA nylon one-time injection moulding
Motor StructureShaded pole/cage type capacitor structure external rotor motor
ProtectionAutomatic recovery thermal protector
Temperature & Humidity-30ºC ~ +65ºC, 0% ~ 95%
Withstand VoltageAC 1800V at 0.5mA 50/60Hz
Power connectionUL3266-18 Lead wire
Protection GradeIP44
Insulation SystermF
Model NumberC2E-250.48D
Voltage230VAC
Power:50/60Hz
Air Volume738-797CFM
Speed2650-2950RPM
CertificationCE, ROHS, CSA
Unit weight2.7KG
ColorBlack

Packaging & Delivery:
Packaging Details: 12 PCS/CTN
Weight: 33KGS/CTN
Size: 54*54*43cm
Delivery Detail (sample): Shipped in 3-8 days after payment
