280mm electrical cooling fans blower fan

FOB Reference Price:Get Latest Price
US $10-28 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan
Electric Current Type:
AC, AC
Mounting:
Free Standing
Blade Material:
Cast Iron
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Jason Fan
Model Number:
FJ28082MAB
Voltage:
230V
Power:
105W-140W
Air Volume:
1097-1204CFM
Speed:
2550-2800RPM
Certification:
CCC, CE, CSA, ROHS
Motor Structure:
external rotor motor
Operation System::
Maintain-free double high precision ball bearings.
Allowable Ambient Temperature Range:
-30~+75 degree
Power Supply Connection:
PA-10(Terminal connection)
Protection Grade:
IP44
Unit weight::
2.8KG
Dielectric Withstand Voltage::
AC 1800V at 0.5mA 50/60Hz
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard carton.
Port
NINGBO OR SHANGHAI
Lead Time :
In 15 dyas

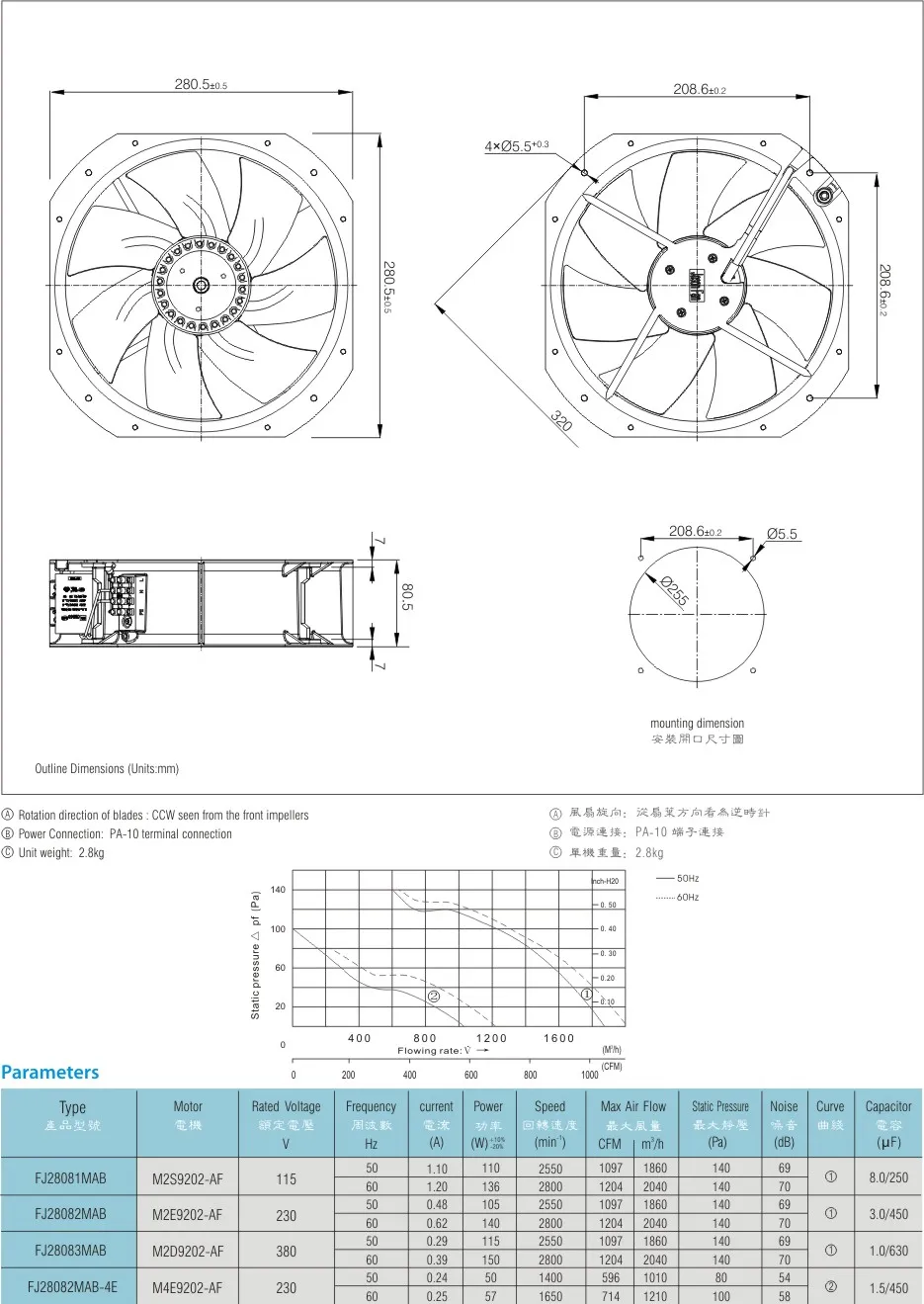

280mm electrical cooling fans blower fan
Frame
Aluminum die-casting, surface is finished by anti-corrosion
treatment with primary color or black electrophoresis
anti-corrosion treatment
Impeller
Metal impellers are welded to motor rotor, and surface is
finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity
Temperature -30ºC ~ +75ºC Humidity 0% ~ 95%
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation System
design according to IEC61858 Grade F,
Protection Grade
IP44

Quick Details:

TypeAxial Flow Fan
Frame MaterialAluminum die-casting
ImpellerMetal
Motor StructureExternal rotor motor
ProtectionAutomatic recovery thermal protector
Temperature & Humidity-30ºC ~ +75ºC, 0% ~ 95%
Withstand VoltageAC 1800V at 0.5mA 50/60Hz
Power connectionPA-10(Terminal block connection)
Protection GradeIP44
Insulation SystermF
Model Number8FJ28082MAB
Voltage115VAC / 230VAC / 380VAC
Power:50/60Hz
Air Volume1097-1204CFM
Speed2550-2800RPM,Singel speed or 3-speed
CertificationCE, ROHS UL, CSA
Unit weight2.8KG
ColorBlack or Grey

Packaging & Delivery:
Packaging Details: 5 PCS/CTN
Weight: 13KGS/CTN

Size: 53.5 x 27.5 x 27.5cm
Delivery Detail (sample): Shipped in 3-8 days after payment
