centrifuge air blower fan / ac centrifugal fan blower / centrifugal exhaust fan

FOB Reference Price:Get Latest Price
US $30-60 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Centrifugal Fan
Electric Current Type:
AC, AC
Blade Material:
Plastic
Mounting:
Duct Fan
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Jason Fan
Model Number:
C4E-355.60
Power:
170/230W
Voltage:
230V
Air Volume:
1505/1711CFM
Speed:
1380/1550RPM
Certification:
CCC, CE, CSA, ROHS, UL
Motor Structure:
external rotor motor
Protection Grade:
IP44
Unit weight:
4.7KG
Dielectric Withstand Voltage::
AC 1800V at 0.5mA 50/60Hz
Insulation:
F Class
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
80000 Piece/Pieces per Month
Packaging & Delivery
Port
NINGBO OR SHANGHAI
Lead Time :
Shipped in 30 days after payment

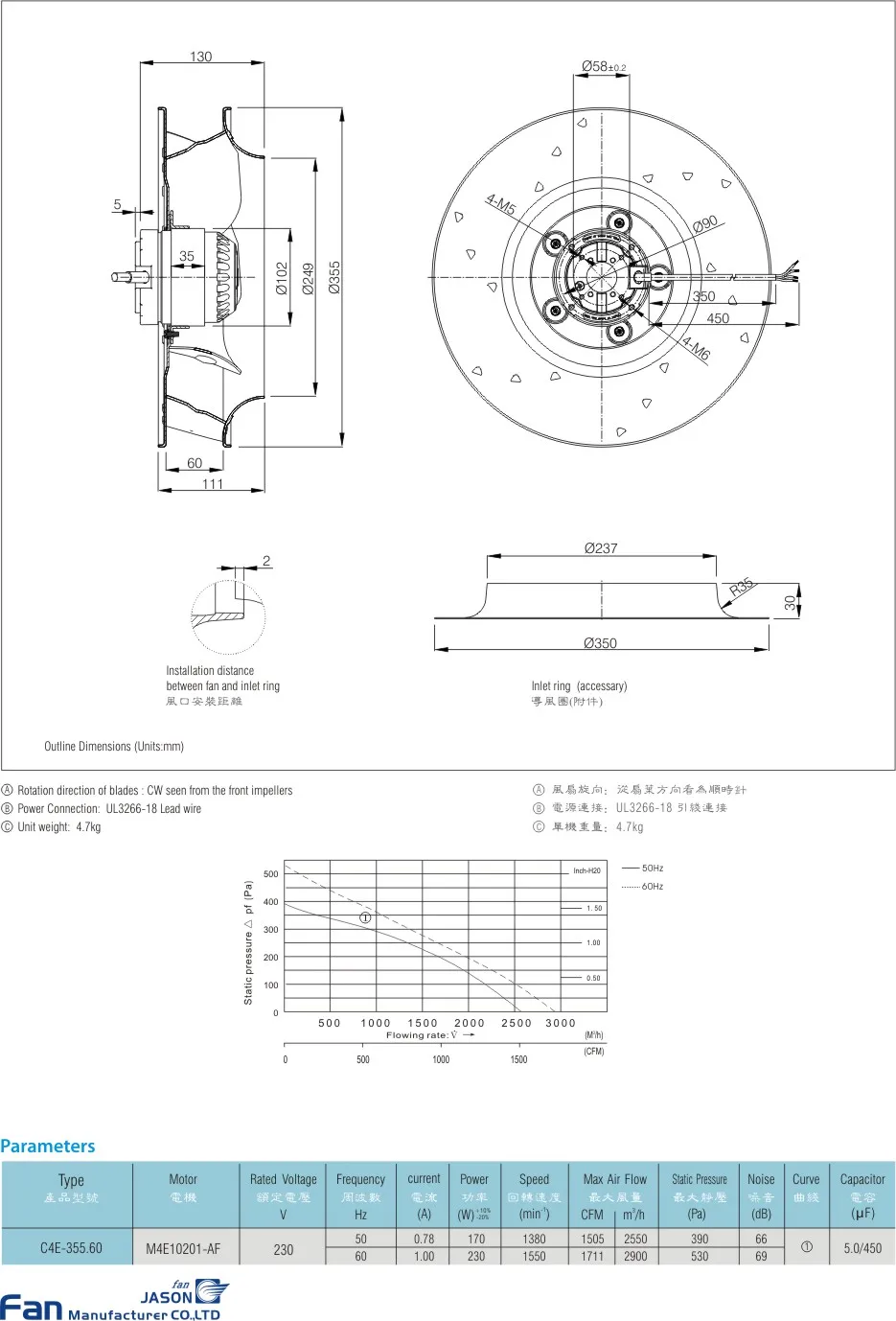

centrifuge air blower fan / ac centrifugal fan blower /centrifugal exhaust fan
Motor
Cage type capacitor structure external rotor motor
Impeller
Impact molding of aluminium alloy plate
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +70ºC (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
IP44


TypeCentrifugal Fan
ImpellerImpact molding of aluminium alloy plate
Motor StructureShaded pole/cage type capacitor structure external rotor motor
ProtectionAutomatic recovery thermal protector
Temperature & Humidity-40ºC ~ +70ºC, 0% ~ 95%
Withstand VoltageAC 1800V at 0.5mA 50/60Hz
Power connectionUL3266-18 Lead wire
Protection GradeIP44
Insulation SystermF
Model NumberC4E-355.60
Voltage230VAC
Power:50/60Hz
Air Volume1505/1711cfm
Speed1380/1550RPM
CertificationCE, ROHS, CSA
Unit weight4.7KG
ColorBlack


Packaging & Delivery:
Packaging Details: 1 PCS/CTN
Weight: 5.2KGS/CTN

Size:39*39*21cm
Delivery Detail (sample): Shipped in 3-8 days after payment
