22580 cooling fan with good quality for welding machine

FOB Reference Price:Get Latest Price
US $1-30 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan
Electric Current Type:
AC, AC
Mounting:
Free Standing
Blade Material:
Stainless Steel
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Jason Fan
Model Number:
FJ22082MAB
Voltage:
230V
Power:
65-77W
Air Volume:
546-596CFM
Speed:
2550-2750RPM
Certification:
CCC, CE, CSA, ROHS
Motor Structure:
external rotor motor
Operation System::
Maintain-free double high precision ball bearings.
Allowable Ambient Temperature Range:
-30~+60 degree
Power Supply Connection:
PA-10(Terminal connection)
Protection Grade:
IP44
Unit weight::
2.2KG
Dielectric Withstand Voltage::
AC 1800V at 0.5mA 50/60Hz
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard carton.
Port
NINGBO OR SHANGHAI
Lead Time :
In 15 dyas

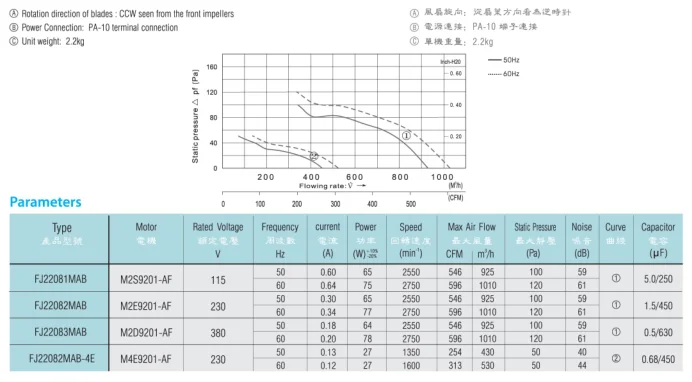

22580 cooling fan with good quality for welding machine

FJ22082MAB
Frame
Aluminum die-casting, surface is finished by anti-corrosion
treatment with primary color or black electrophoresis
anti-corrosion treatment
Impeller
Metal impellers are welded to motor rotor, and surface is
finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity
Temperature -30ºC ~ +80ºC Humidity 0% ~ 95%
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation System
design according to IEC61858 Grade F,
Protection Grade
IP44


Quick Details:

TypeAxial Flow Fan
Frame MaterialAluminum die-casting
ImpellerMetal
Motor StructureExternal rotor motor
ProtectionAutomatic recovery thermal protector
Temperature & Humidity-30ºC ~ +80ºC, 0% ~ 95%
Withstand VoltageAC 1800V at 0.5mA 50/60Hz
Power connectionPA-10(Terminal block connection)
Protection GradeIP44
Insulation SystermF
Model NumberFJ22081MAB,FJ22082MAB,FJ22083MAB,FJ22082MABTS
Voltage115VAC / 230VAC / 380VAC
Power:50/60Hz
Air Volume546-596CFM
Speed2550-2750RPM,Singel speed or 3-speed
CertificationCE, ROHS UL, CSA
Unit weight2.2KG
ColorBlack or Grey

Packaging & Delivery
Packaging Details:    axial fan motor is with flexible wrapping and standard carton.
5pcs/Carton.
Weight:12kg/Carton.Carton size:53.5*27.5*27.5CM.
Delivery Detail:    Shipped in 5 days after payment
Stable Industrial Equipment Cooling Fan Manufacurer with CE Certificate FJ22082MAB
