Cabinet Ventilation Fan with Industrial Fan (FJK6626M)

FOB Reference Price:Get Latest Price
US $2-30 / Pieces | 1 Piece/Pieces (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 101 - 200 People
  • Factory Size: 3,000-5,000 square meters
  • No. of Production Lines: 5
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 6
Trade Capacity >
  • Export Mode: Using an agent Have Own Export License
  • Export Percentage: 41% - 50%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Stainless Steel
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Jasonfan
Model Number:
FJK6626.M230
Voltage:
115-400V
Power:
50/60Hz
Air Volume:
500-560m³/H
Speed:
1370-2750RPM
Certification:
CCC, CE, CSA, ROHS
Inner installed fan:
FJ22082MAB AC shaded pole fan or DC fan
Material of air filter:
ABS anti-flame plastic,accord with UL94VO
Filter pad material:
150g/M3 Nylon fibre compound,filtrate efficient reaches 78%
Ambient operation temperature:
-20~+75 degree(under un-concretionary)
Ambient operation temperature 2:
-20~+75 degree(store temperature)
Protection class:
EN 60529 IP55(not suitable for outdoor equipment)
Fixing way:
bayonet fixing or screw fixing
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
80000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
air filter is with flexible wrapping and standard carton.
Port
Ningbo/Shanghai
Lead Time :
15days after deposit

low power consumption poultry farm equipment ventilator FJK6626.M230

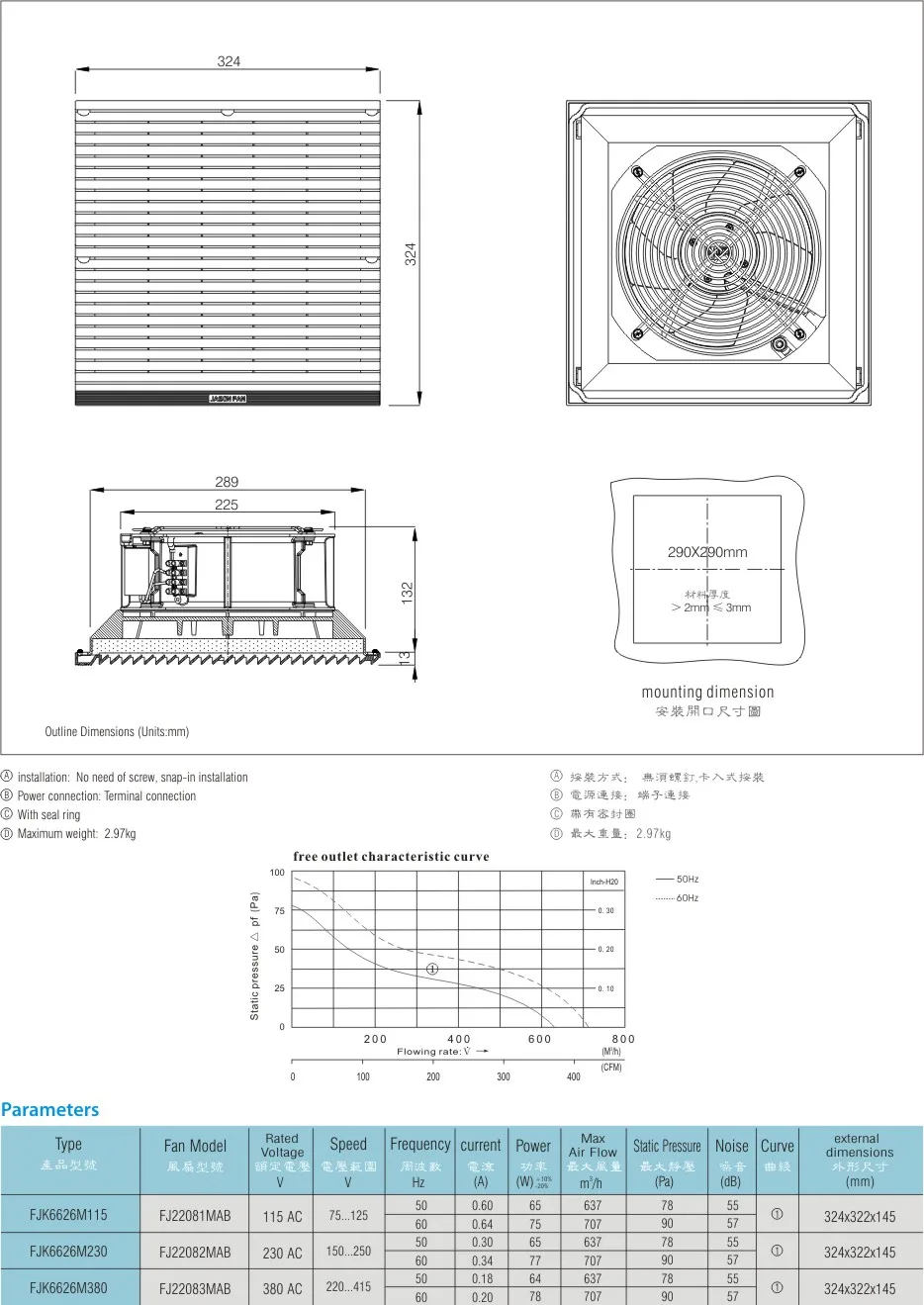

Characteristics:
It comprises of a axial fan, a protective housing on the front and rear
surfaces and filter designed to retain dust particles.
The filters that equip the fans must be cleaned and replaced regularly.
This filter can be replaced during operation without risk of touch
with the rotating part.
Material of filter pad: 100g/ M3 nylon fiber compound, Filtration
efficiency up to 7 3%.
Operation Temperature/Humidity Range: (under unconcretionary
state) -20ºC ~ +75ºC (temperature), 0% ~ 95% (himidity)
RAL 7035 grey is the standard offer with the possibility to change to
RAL 7032 by means of a replacement grille.
Bear in mind the pressure losses caused by the outlet element (grille
with filter, ventilation louvre or simple opening) when determining
the fan flow rate.
Protection class: E N 60 5 29 I P 5 4 (not suitable for outdoor equipment).

TypeFan Filter
Temperature & Humidity-30ºC ~ +80ºC, 0% ~ 95%
Power connection Terminal connection
Protection GradeIP54
Model NumberFJK6626M230
VoltageAC230V
Power:50/60Hz
Air Volume637-707 M3/H
CertificationCE, ROHS CSA
Unit weight1.45KG
ColorRAL7035


Packaging & Delivery:
Packaging Details: 6 PCS/CTN
Weight: 26KGS/CTN

Size: 51 x36 x 69cm
Delivery Detail (sample): Shipped in 3-8 days after payment
